SKYLORD LED BAR 40″
/
Strands Lighting Division

SKYLORD LED BAR 40″

White / Amber Pos. | Built-in Relay | Harness
SKU: 902003
RRP: €0 (Excl. tax)

Choose variant

SKYLORD LED BAR 40″

RRP: €0 (Excl. tax)
SKU: 902003
Chosen

SKYLORD LED BAR 20″

RRP: €0 (Excl. tax)
SKU: 902001
Choose

SKYLORD LED BAR 30″

RRP: €0 (Excl. tax)
SKU: 902002
Choose

SKYLORD LED BAR 10″

RRP: €0 (Excl. tax)
SKU: 902000
Choose
Buy in store Buy in USA
Manual Product sheet

Delivering over 30,000 actual lumens and a 1,000-meter reach in Xperience mode, the 40” Skylord sets a new standard for LED bars. The E-mode is E-approved R148/R149 with a reference number of 2×20. Thanks to advanced engineering, we’ve incorporated two light sources into one LED bar.The new beam pattern is designed for maximum visibility far ahead, close to the car, and to the sides. The housing is cast in one piece, and the LED bar is IP69K-rated. It is also covered by Strands’ 5-year warranty. The Skylord includes a built-in relay and comes with a 2.5-meter cable. All necessary installation accessories are provided: side and hanging brackets, washers, bolts, rubber pads, Strands logo–branded rubber covers, and an XBB cable harness with Super Seal connector and position light switch. A CAN bus interface, like XBB, might be required to complete the installation.

    • Unit pcs
    • Voltage 10-32V DC
    • Theoretical effect 350W
    • Consumption 338,0W
    • Functions High beam, white and amber position light
    • Consumption specific function Xperience mode: 338W / E-mode: 76W / White position light: 12,8W / Amber position light: 12,8W
    • Theoretical lumen 39000lm
    • Actual lumen Xperience mode: 30100lm / E-mode: 8500lm
    • 1 lux @ Xperience mode: 1090m / E-mode: 390m
    • Color temperature 5700K
    • Beam pattern Long-distance beam
    • Beam angle 13,2°
    • Connection Cable
    • Cable length 2500mm
    • Color housing Black
    • Color lens Clear
    • Color LED´s White/amber
    • Material bracket Aluminium alloy
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length 986mm
    • Depth 77,95mm
    • Height 67,45mm
    • Height including bracket 73,85mm
    • Weight 4,92kg
    • IP-class IP68/69K
    • Operating temperature -35 - +60°C
    • E-approved Yes
    • According to regulation ECE R148,R149
    • Reference number 2 X 20
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + (High-beam)
    • White cable White Position light
    • Yellow cable Amber Position light
    • Grey cable Signal wire connect to +VDC
    • Included in package Side brackets, Hanging brackets, Washers, Bolts, Rubber pads, Strands logo rubber covers, Cable harness for XBB, Duraseals
    • Length inner box 1120mm
    • Width inner box 150mm
    • Height inner box 135mm
    • Gross weight 5,7kg
    • Volume 0,02m³
    • Warranty 5 Years
    • Length master carton 1150mm
    • Width master carton 475mm
    • Height master carton 160mm
    • Weight master carton 1,9kg
    • PCS in master carton 3pcs

Passion drives evolution

5-year warranty

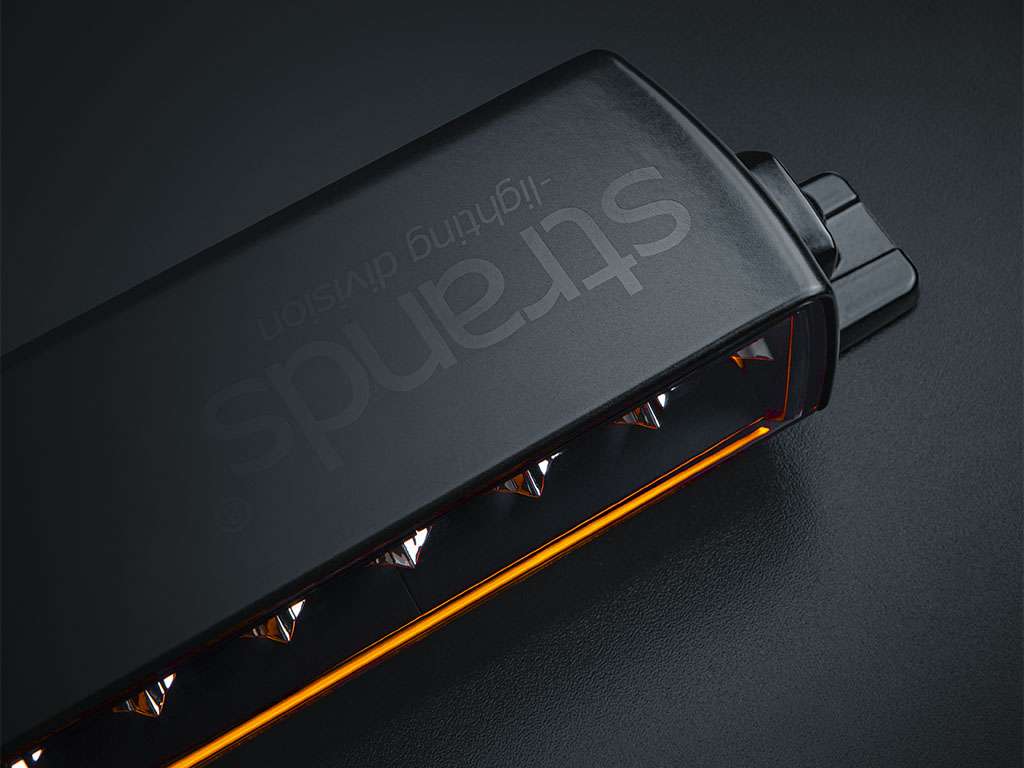

This is the next generation of LED bars, with an output tailored to provide a new kind of lighting experience. The housing is cast in one piece, securing it against water, corrosion, vibrations, and dirt. Since the housing has no screw holes, it offers superior protection against wear and tear. It’s waterproof, IP-rated IP69K, and has a new type of coating. It features double breathers and a solid build, making it especially suited to heavier vehicles. It’s covered by Strands’ unique 5-year warranty.

One LED bar, 2x20 reference number

By combining clever design and innovative technology, we have integrated a dual light source into a single LED bar. This means that in the E-approved E-mode (R148/149), the 20”-40” Skylords have a reference number of 2x20. The 10” version has reference number 20. In many European countries, a dual light source is a requirement for road-legal lighting. This solution allows the Skylord LED bar to deliver more actual lumens while remaining approved in E-mode.

1 lux @ 1 km

Thanks to the effective technology, the Skylord output is unique. The new beam pattern provides maximum visibility to both the front and sides. It reaches further than the average combo beam and is broader and stronger closer to the vehicle than ordinary long-distance beams. All Skylord LED bars can be used with the E-approved E-mode or with Xperience mode. The Xperience mode is a powerful boost mode that reaches over 30,000 actual lumens and 1 lux @ 1 km for the 40” model.

Plug and play installation

The Skylord LED bar is delivered with an XBB cable harness, enabling a smooth plug-and-play connection between the LED bar and XBB interface. The signal cable is already integrated into Output 1, and the position light into Output 2, ensuring fast and accurate setup. It features a pre-mounted switch for the position lights, located in the engine compartment, allowing you to easily switch them on or off with a simple press.
