STRANDS PRO XBB POWERUNIT WIRING HARNESS
/
Strands Lighting Division

STRANDS PRO XBB POWERUNIT WIRING HARNESS

With Switch For Pos. Light | Holder
SKU: 907003
RRP: €0 (Excl. tax)
Buy in store Buy in USA
Manual Product sheet

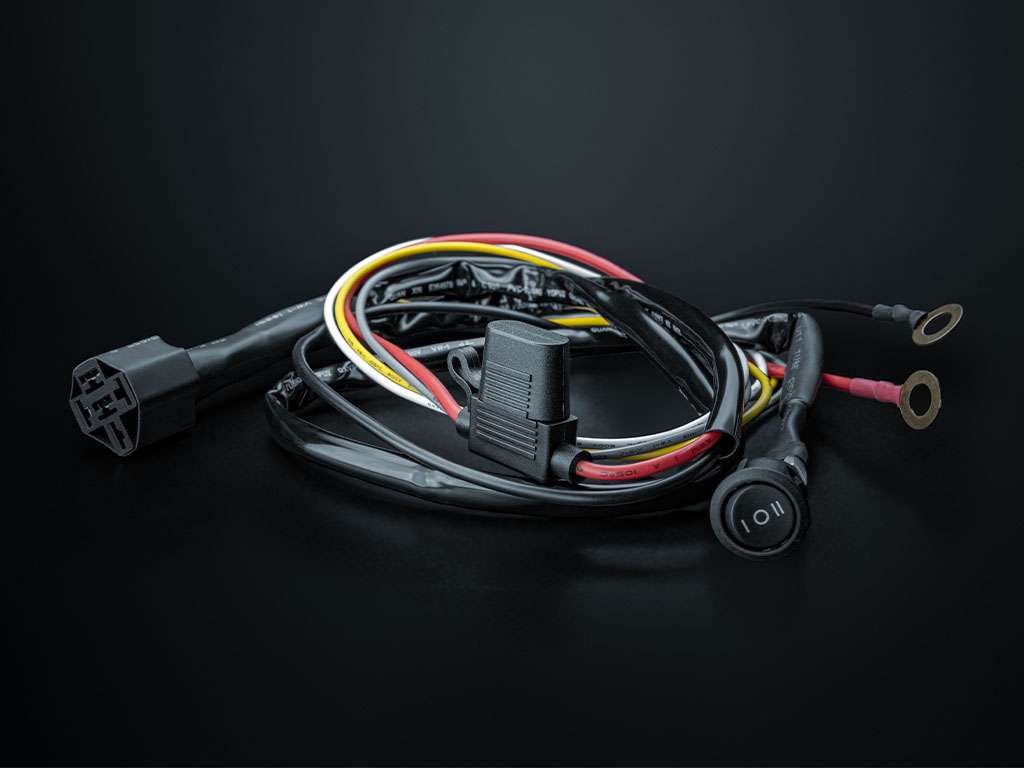

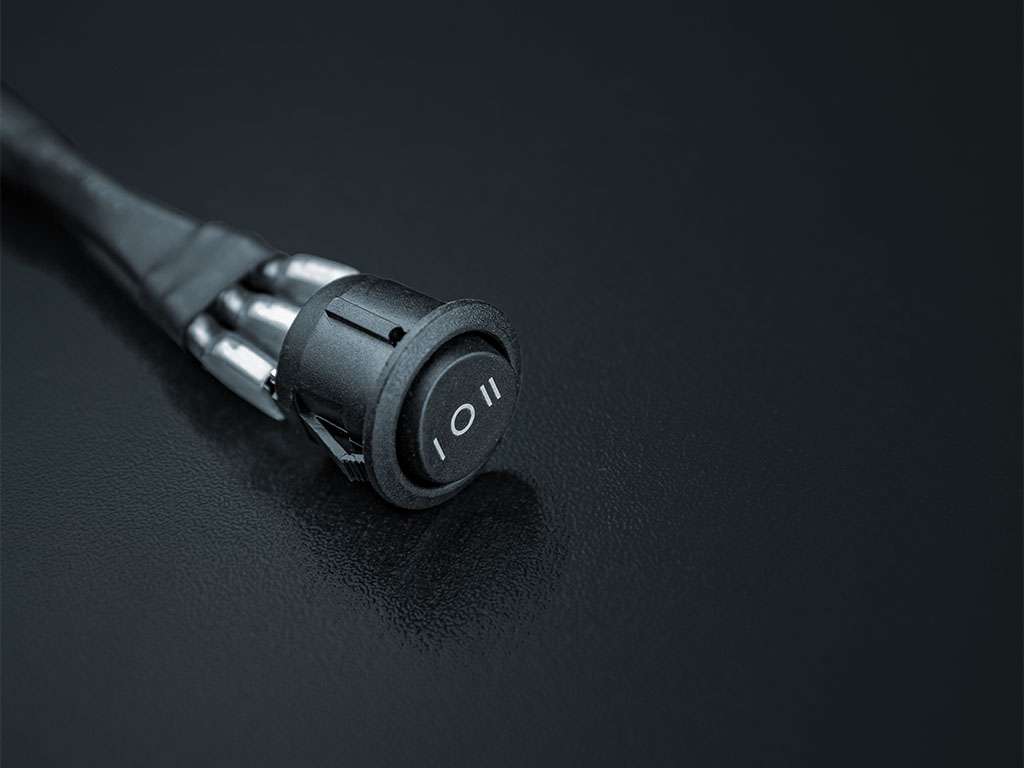

With the Strands Pro wiring harness, you can easily connect your lighting to XBB through smooth plug-and-play installation. The signal cable is already integrated into Output 1, and the position light into Output 2, ensuring fast and accurate setup. The wiring harness is designed for LED bars with a built-in relay or for loads up to 15 A / 180 W. It features a pre-mounted switch for the position lights, placed in the engine compartment, allowing you to easily switch or turn them off with a simple press. The harness is 700 mm long and is supplied with three DuraSeal heat-shrink sleeves.

    • Unit pcs
    • Voltage 12-24V DC
    • Connection Loose cable / Battery pole
    • Cable length 700mm
    • Weight 0,5kg
    • Additional information With switch for pos. light and fits XBB powerunit
    • Black cable - (Negative)
    • Red cable + (Positive)
    • White cable White Position light
    • Blue cable Singal Ouput 2
    • Yellow cable Amber Position light
    • Grey cable + Signal wire output 1
    • Included in package 3 pcs duraseal
    • Length inner box 210mm
    • Width inner box 60mm
    • Height inner box 80mm
    • Gross weight 0,55kg
    • Volume 0,0001m³
    • Warranty 3 Years
    • Length master carton 435mm
    • Width master carton 325mm
    • Height master carton 425mm
    • Weight master carton 9,5kg
    • PCS in master carton 50pcs
